MIG250 New
New MIG250

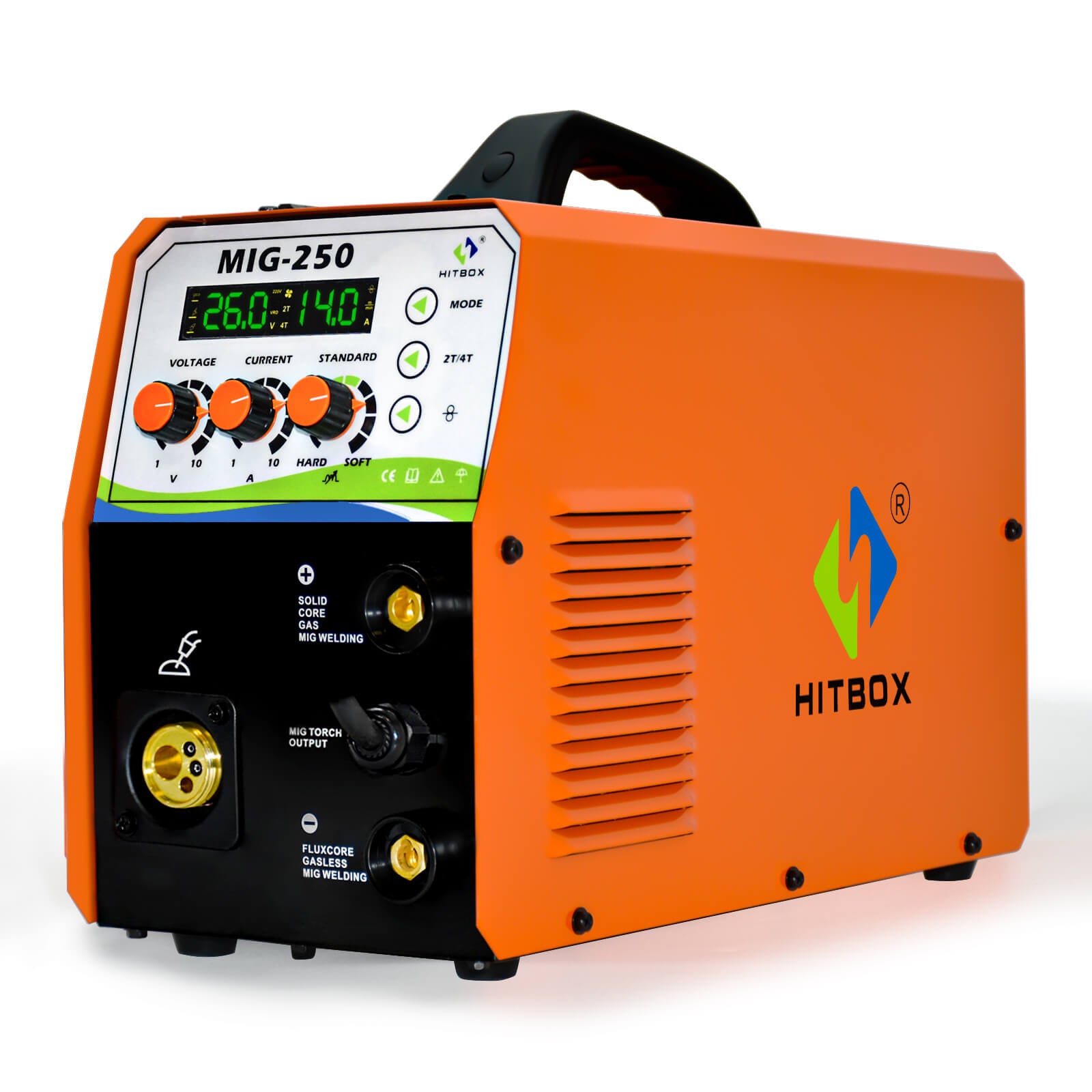

HITBOX MIG250 mig welder
The HITBOX welding machine is easy to use and perfectly suited to both experienced users and beginner. You can carry out a lotsof welding jobs, like automoive, metalworking, house repairs or more routine work. Whether you are repairing aluminium bike frames or working on steel sculptures, there is a HITBOX welder for the job and a HITBOX for you!
- Welding functions: Support for MIG gas, MIG mix, Flux cored/MIG gasless, Lift TIG, MMA.
- Clear display: The new digital LED panel display shows every detail of the weld clearly.
- Easy adjustment: easy switching of welding modes and adjustment of welding parameters.
- Automatic wire feed function: quickly feeds the wire out of the gun, even to inaccessible interiors.
- Inductance adjustment: adjusts the softness of the arc, reduces spatter/deepens the fusion pool.
- Multiple upgrade functions: 2T/4T welding mode, inductance adjustment, voltage adjustment
PANEL DISPLAY Of MIG250
About HITBOX MIG250
Features
- 180amp 4 in 1 mig welder
- Support MIG gasless/MAG gas/MMA/Lift TIG
- Suitable for welding wire diameter: 0.6/0.8/0.9/1.0mm
- Suitable electrode diameter: φ1.6-4.0
- Welding metal: iron, stainless steel, alloy steel
- MIG time: 2T/4T, support long time MIG pull welding

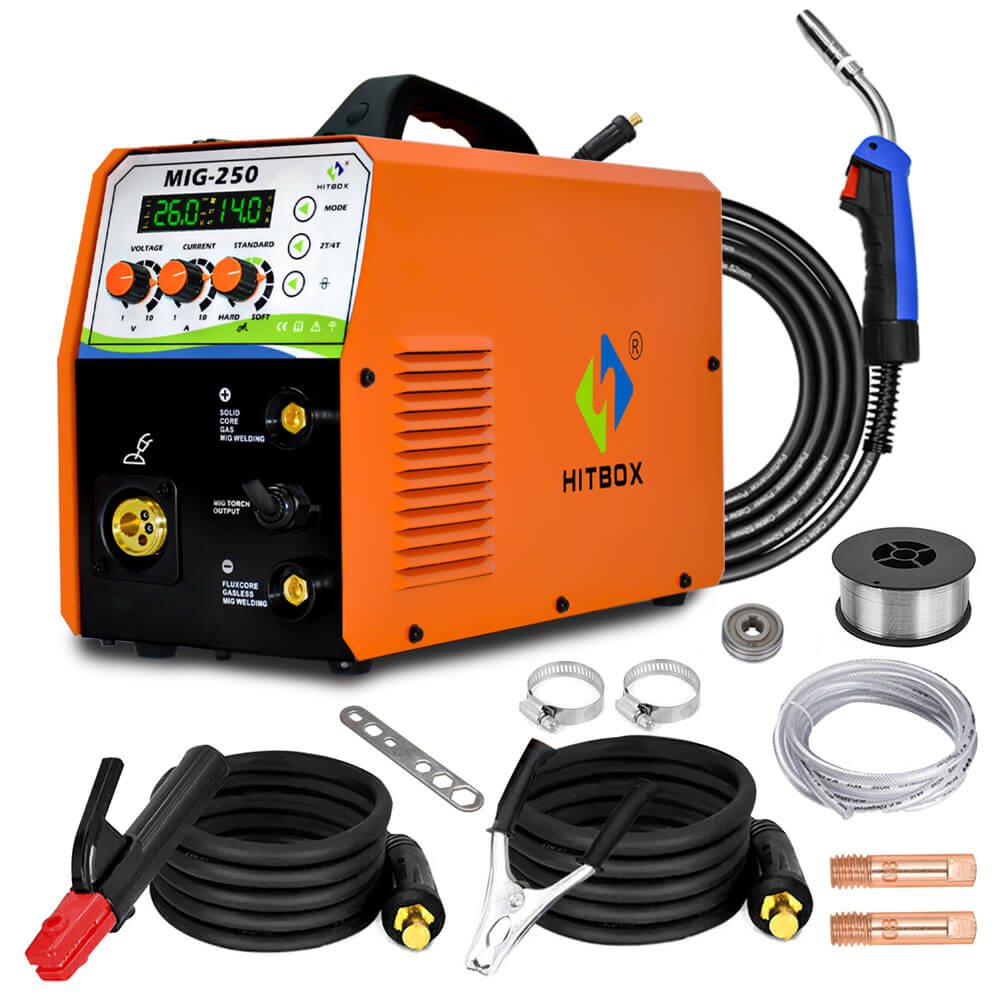

Package contents
- 1*MIG250 welder
- 1* MB15 mig torch(3m)
- 1* 200A electrode holder(1.8m)
- 1* 200A ground clamp(1.8m)
- 1* gas tube
- 2* rolls
Technical Parameter
- Rated input power：5.9KW
- Rated input current: 26.2A
- Welding current range (MMA): 30-180A
- Welding current range (TIG): 20-180A
- Welding voltage range (MIG): 30-180A
- overall efficiency: 85%
- Enclosure class: IP21S
- lnsulation class: H
|
|
|
|
|---|---|---|
About mig welding
Note: The MIG function does not display the current, only the wire feed speed(0-14m/min). |
About MMA welding
TIPS: Built-in anti-stick, hot start system |
About Lift TIG welding
Recommend using tungsten needles within a diameter of 3.2mm for arc start.
|
HITBOX WLEDER
DIY&Restoration. We offer a professional after-sales service.
New MIG250
HITBOX MIG250 mig welder
The HITBOX welding machine is easy to use and perfectly suited to both experienced users and beginner. You can carry out a lotsof welding jobs, like automoive, metalworking, house repairs or more routine work. Whether you are repairing aluminium bike frames or working on steel sculptures, there is a HITBOX welder for the job and a HITBOX for you!
- Welding functions: Support for MIG gas, MIG mix, Flux cored/MIG gasless, Lift TIG, MMA.
- Clear display: The new digital LED panel display shows every detail of the weld clearly.
- Easy adjustment: easy switching of welding modes and adjustment of welding parameters.
- Automatic wire feed function: quickly feeds the wire out of the gun, even to inaccessible interiors.
- Inductance adjustment: adjusts the softness of the arc, reduces spatter/deepens the fusion pool.
- Multiple upgrade functions: 2T/4T welding mode, inductance adjustment, voltage adjustment
PANEL DISPLAY Of MIG250
About HITBOX MIG250
Features
- 180amp 4 in 1 mig welder
- Support MIG gasless/MAG gas/MMA/Lift TIG
- Suitable for welding wire diameter: 0.6/0.8/0.9/1.0mm
- Suitable electrode diameter: φ1.6-4.0
- Welding metal: iron, stainless steel, alloy steel
- MIG time: 2T/4T, support long time MIG pull welding
Package contents
- 1*MIG250 welder
- 1* MB15 mig torch(3m)
- 1* 200A electrode holder(1.8m)
- 1* 200A ground clamp(1.8m)
- 1* gas tube
- 2* rolls
Technical Parameter
- Rated input power：5.9KW
- Rated input current: 26.2A
- Welding current range (MMA): 30-180A
- Welding current range (TIG): 20-180A
- Welding voltage range (MIG): 30-180A
- overall efficiency: 85%
- Enclosure class: IP21S
- lnsulation class: H
About mig welding
- MAG welding: Connect the ground clip to the negative terminal.
- MIG gasless: connects the ground clamp to the positive terminal.
- Supports the use of solid/flux cored wire of 0.6/0.8/0.9/1.0mm diameter.
Note: The MIG function does not display the current, only the wire feed speed(0-14m/min).
About MMA welding
- Connect the ground clip to the negative terminal
- Connect the electrode holder to the positive terminal
- Supports diameters1.6 to 4.0mm welding rods, not compatible with cellulose electrodes
TIPS: Built-in anti-stick, hot start system
About Lift TIG welding
- Connect the ground clip to the positive terminal
- Connect the WP-17V tig torch to the negative terminal
Recommend using tungsten needles within a diameter of 3.2mm for arc start.
- Note: WP-17V torch not included, ASIN of torch B09XQCLBRR
HITBOX WLEDER
DIY&Restoration. We offer a professional after-sales service.
