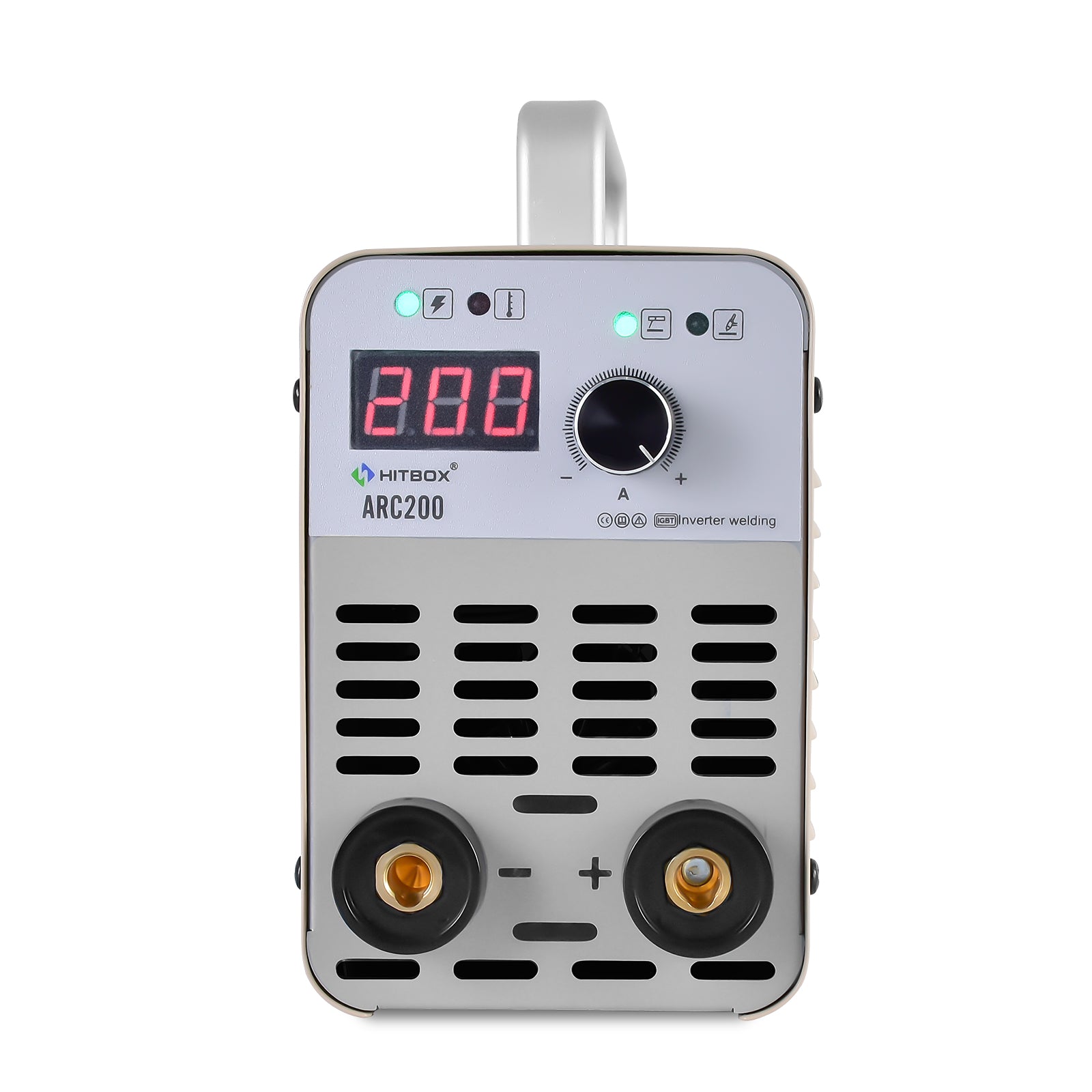

HITBOX ARC200 MMA Welder
$99.99
Download Specifications
clause
X
Specification
HITBOX 110/220V 200AMP Stick Welder Arc MMA Welding Machine Dual Volt 60% Duty Cycle Portable IGBT Inverter Welder
10-200A welding range HITBOX stick welder is easy to strike an arc with little spatter, stable current, and good performance.
The weld machine has a rated duty cycle of 60%. With this feature, it will protect you and your welder from any long-lasting damage. Welding 7018 1/8" very well, also 6013 and 7018 3/32".
Stick Inverter welder ARC200 110V/220V 190A output with 40% d/c ,
fairy strong 1/2 hour non-stop at 150amp with 7018 rods ,
The MMA200 welder is the perfect choice to do projects and repairs around the home ,farm and shop.
It runs off a standard 220 volt industrial input power and produces an welding range of 10-190A with 40% duty cycle.
The weld machine has a rated duty cycle of 60%. With this feature, it will protect you and your welder from any long-lasting damage. Welding 7018 1/8" very well, also 6013 and 7018 3/32".
Stick Inverter welder ARC200 110V/220V 190A output with 40% d/c ,
fairy strong 1/2 hour non-stop at 150amp with 7018 rods ,
The MMA200 welder is the perfect choice to do projects and repairs around the home ,farm and shop.
It runs off a standard 220 volt industrial input power and produces an welding range of 10-190A with 40% duty cycle.
| Model | ARC200 |
| Rated voltage(V) | 110V/220V(50/60HZ) |
| Rated input current(A) | 32.2A |
| No-load voltage(V) | 64V |
| Rated output voltage(V) | 20.4-29V |
| Output current(A) | 10-190A |
| Duty cycle | 60% |
| Power factor | 0.73 |
| Electrode Diameter(mm) | 2.5mm/3.2mm/4mm |
| Cooler | FAN |
| Protection class | IP21 |
| net weight | 6.3lb/2.85kg |
| Dimeension(mm) | 220*95*150mm |
| Functions | MMA/LIFT Current knob VRD O.H Lamp |
| Package Include |
1pcs ARC Welder
1pcs Cable+ Electrode holder 1pcs Cable+ earth clamp 1pcs 110V 220V Cable adapter
|
If you need other plug , Please contact us
