HITBOX HF TIG 200Amp TIG Welder 200V MMA/ARC TIG Electric IGBT Welding Machine（Model：HBT2000）
$249.99
Download Specifications
clause
X
Specification
Why you choose HBT2000?
The reason is:
1. 200Amp TIG/Stick welder ,High frequency up to 100KHZ suitable for stainless steel, alloy steel, low carbon steel, copper, cast iron, chromium and other metals
2. 110V/220V Dual voltage IGBT inverter Tig/ARC welder features automatic overheat and over current welding protection. A reliable work tool for professionals or personal use
3. New downslop function helps decrease the current linearly and protects the weld surface with beautiful patterns. 2T(Manual) for the re-tack welding / 4T(Semi-auto) switch for welding medium thickness plates
4. Upgraded WP-26 TIG torch with new quick connector , easy to connect and disconnect, can tightly fit, barely leak gas. Ideal performance for most 6010, 6011, 6013 and 7018 rods
5. Application of Tungsten electrodes diameter: 1/8”,3/32",3/16",1/16",5/32".Perfect welding can be achieved, almost no spatter and post-weld cleaning
2. 110V/220V Dual voltage IGBT inverter Tig/ARC welder features automatic overheat and over current welding protection. A reliable work tool for professionals or personal use
3. New downslop function helps decrease the current linearly and protects the weld surface with beautiful patterns. 2T(Manual) for the re-tack welding / 4T(Semi-auto) switch for welding medium thickness plates
4. Upgraded WP-26 TIG torch with new quick connector , easy to connect and disconnect, can tightly fit, barely leak gas. Ideal performance for most 6010, 6011, 6013 and 7018 rods
5. Application of Tungsten electrodes diameter: 1/8”,3/32",3/16",1/16",5/32".Perfect welding can be achieved, almost no spatter and post-weld cleaning
Product Features:
- Brand new and high quality

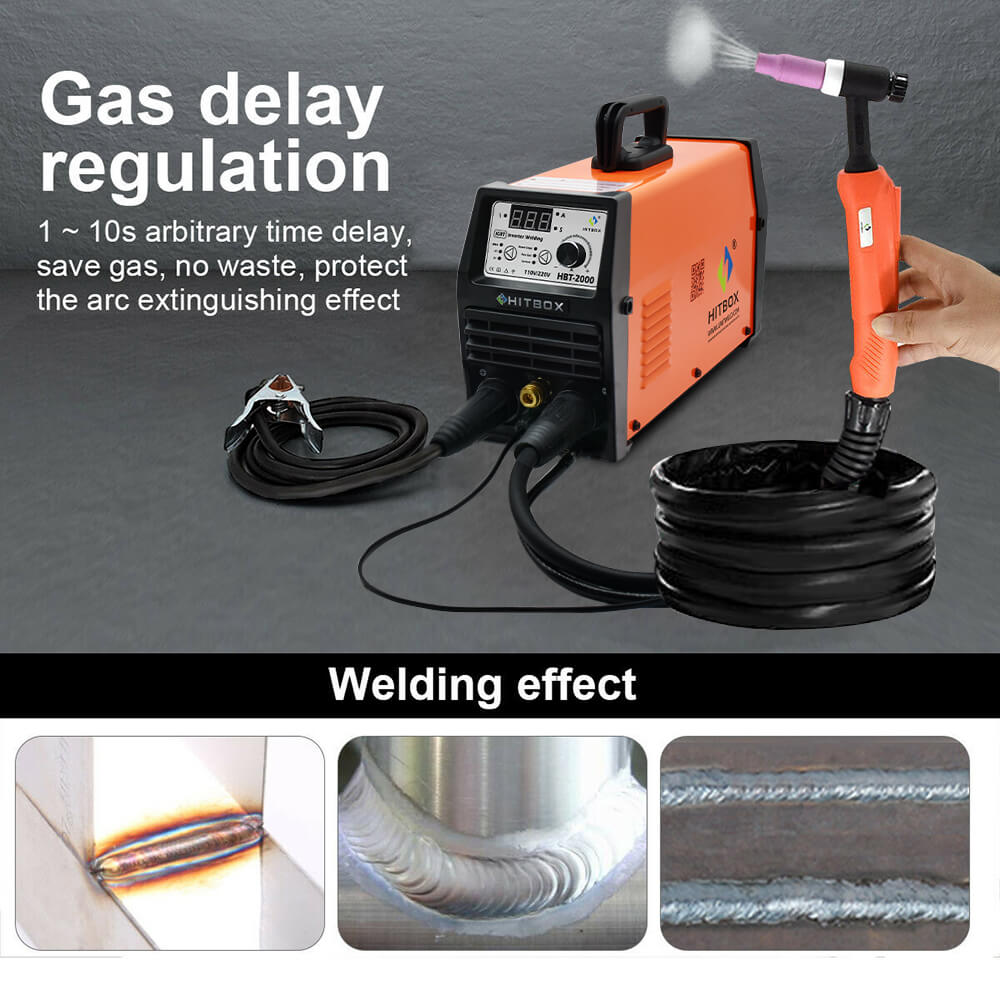

- Appearance design patent, Digital LED display when use, Featuring controlling knob,start with VRD, With gas delay adjustment function knob，and 2T 4T function.
- Adopts IGBT module technology, energy-saving and stable heat dissipation
- 60% high duty cycle, lower cost operation, superior output, convenient quick connection for the output makes it quick, safe, simple and stable
- Hot striking ARC current is adjustable, greatly improve the ARC-starting function
- Start ARC easily, stable welding ARC, anti-stick, deep weld pool and beautiful welding shape
- Efficient air-ejection and heat-ejection technology
- Over-heating protection, over-voltage protection, over-current protection
- Adopt newly IGBT inverter technology, Compared to MOS Technology, greatly reduce breakdown
- Inverter frequency up to 100KHZ, the technology is mature, stable performance
- TIG Welding thickness 0.3-5.0mm, and application of electrode diameter (MM): 2--3.2mm;
- Easy arc ignition, litter spattering, stable current and good shaping
Product Details:
- Color: Orange
- Weight: About 9.5kg
- Inverter Technology : IGBT
- Input Voltage(V) : 110V/220V
- Frequency(Hz) :50/60HZ
- No-load Voltage(V) : 114v
- Output Current Range(A) :10-200A
- Rated working Voltage(V) :TIG:15.6V/ARC:25.6V
- Duty Cycle(%) :60%
- No-load Loss(W) :40W
- Arcing Way :Transfer
- Efficiency(%) :80%
- Power Factor :0.73
- Insulation Grade :F
- Housing Protection Grade :IP21S
- Base Material :Carbon,Stainless, Low-alloy steel Plate
- Thickness(mm) :0.3-6.0mm
- Welding Process :TIG / ARC
- Electrode Diameter(mm) :2-3.2mm
Package Include:
1 x HBT2000 NEW welder
1 x high frequency Tig torch
1 x Electrode holder+ Cable
1 x Earth clamp+ Cable
1 x Gas tube
1 x 110v 200v Adapter
