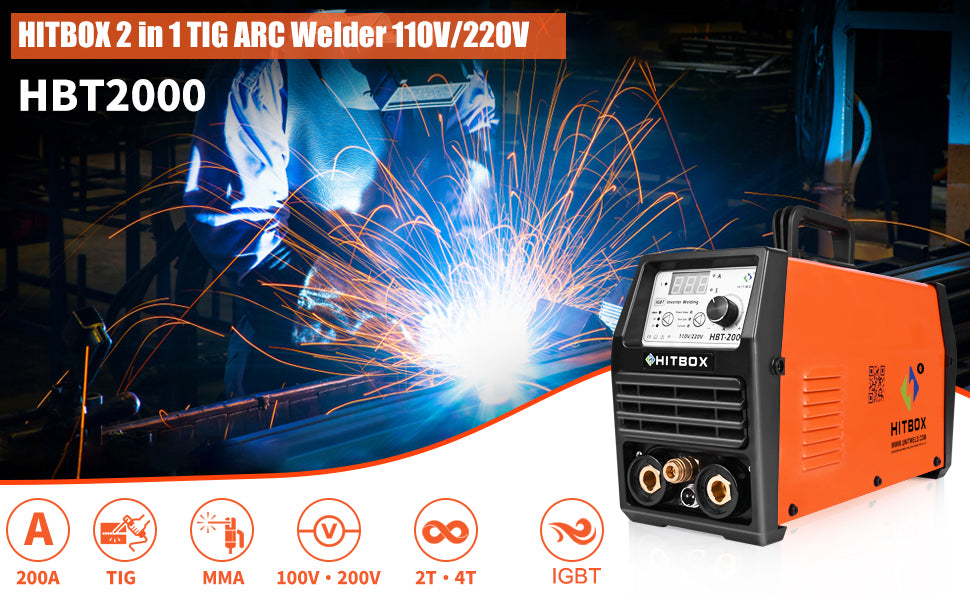

HITBOX Tig Welder Welding Machine 200Amp, High Frequency 2 in 1 IGBT Digital Inverter Tig/ Stick/ Arc/ Sticker Welder HBT2000

$199.99
Type :
$199.99
  • DURABILITY
  • EASY SETUP
  • COMPATIBILITY
PayPal Express Visa Mastercard American Express
Download Specifications
clause
X
Specification

HITBOX Tig Welder Welding Machine 200Amp, High Frequency 2 in 1 IGBT Digital Inverter Tig/ Stick/ Arc/ Sticker Welder HBT2000

  • 200Amp TIG/Stick welder ,High frequency up to 100KHZ suitable for stainless steel, alloy steel, low carbon steel, copper, cast iron, chromium and other metals
  • 220V voltage IGBT inverter Tig/ARC welder features automatic overheat and over current welding protection. A reliable work tool for professionals or personal use
  • New downslop function helps decrease the current linearly and protects the weld surface with beautiful patterns. 2T(Manual) for the re-tack welding / 4T(Semi-auto) switch for welding medium thickness plates
  • Upgraded WP-26 TIG torch with new quick connector , easy to connect and disconnect, can tightly fit, barely leak gas. Ideal performance for most 6010, 6011, 6013 and 7018 rods
  • Application of Tungsten electrodes diameter: 1/8”,3/32",3/16",1/16",5/32".Perfect welding can be achieved, almost no spatter and post-weld cleaning

TIG welding offers a solution for welding critical joints, and for situations where small or exceptionally precise welds are required.

It can be performed with a wide variety of metals, when done correctly, it produces a high-quality and high-purity weld compared with other joining processes, which is crucial in many applications.

The cost of TIG welding services is also usually quite affordable.

However, costs will vary depending upon the materials being welded, and the scope of the project. Overall, it is one of DIY jobs, and other high working places jobs.

Specifications:

Brand name: HITBOX

Parameter: HBT2000

Inverter technology: IGBT

Input voltage: 110V/220V Dual Voltage

Frequency:50/60HZ

Rated input current:24A

No-load voltage: 55V

Output current range :10-140A

Rated output voltage:15.6V

Duty cycle:60%

No-load loss:40W

Arcing way: HF

Efficiency:80%

Power factor:0.73

Insulation grade: F

Housing protection grade:IP21

Net weight:7kg

Packing dimension: 440X260X340mm

Base material: carbon steel,stainless steel, low-alloy steel

Suitable for stainless steel thickness:0.8-4.0mm

Suitable for carbon steel:1.5-6mm

Tungsten rods' size:1.0/1.6/2.0/2.4/3.0mm

Electrode rods' size:2.5/3.2mm

Package Content:

1X Tig Welder HBT2000

1X 1.8 meters Earth clamp

1X 1.8 meters Electrode holder

1X 2.0 meters Gas tube

1X 4.0 meters Tig torch
