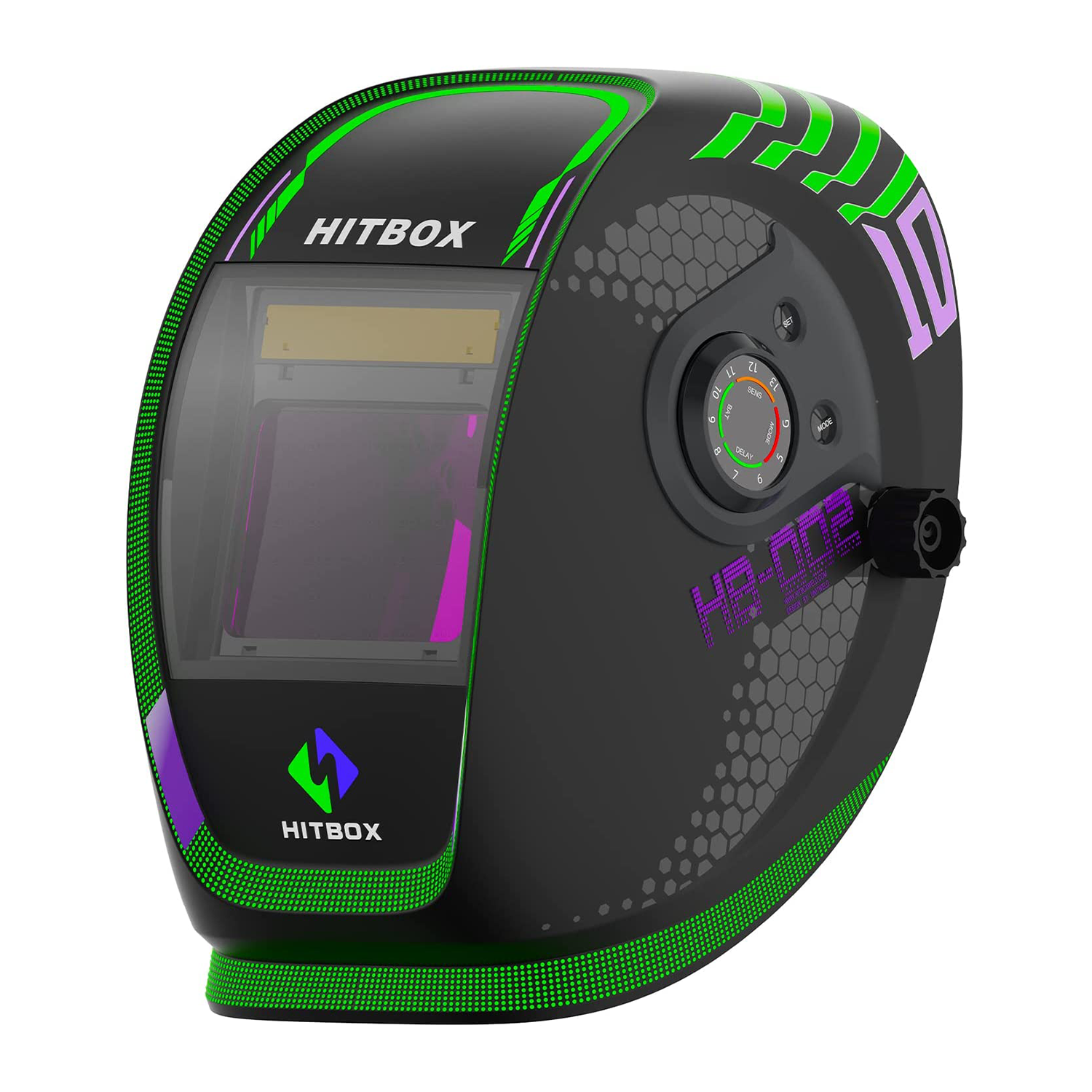

HITBOX Auto Darkening Welding Helmet - Black&Green

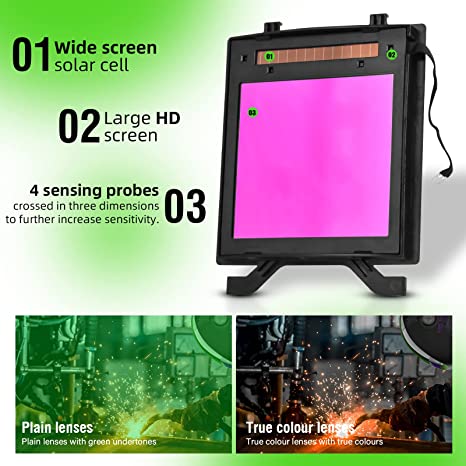

1.3.94”×3.74” (15 sq in) Large Viewing Screen True Color Welding Hood，enhanced application versatility and increases productivity.
2.External intelligent adjustment knob.manual touch function to adjust both sensitivity and dark shade upon your need ,give you more convenience
3. Amazingly widen lens only with HITIBOX today! 3.94”×3.74” (15 sq in) wide viewing powered by the updated True-Color technology restore every details of working conditions.
4.The design of the welding hood conforms to ergonomic principles which makes it easy to operate and comfortable to wear.
| Model | HB-002 |
| Viewing Area(mm) | 100*95 |
| Cartridge Size(mm) | 113*114 |
| Light State | Variable Shade,5~8,9~13 |
| Switch Time(s) | 1/25000s ,From Light to Dark |
| Dark to Light (s) | 0.1-1.0S Adjustment knob |
| Shade Control | External ,Variable |
| Sensitivity Control | Low-High by Adjustment konb |
| Power on/off | Fully Automatic |
| Power supply | 270mah Li-On rechargeable |
| UV/IR Protection | Protection DIN.16 |
| Arc Sensor | 4 |
| Low Amperage TIG | 5amps(DC),z 5amps(DC) |
| Grinding Function | Yes |
| Low Volume Alarm | Yes |
| Operating Temp. | -5°C~+55°C |

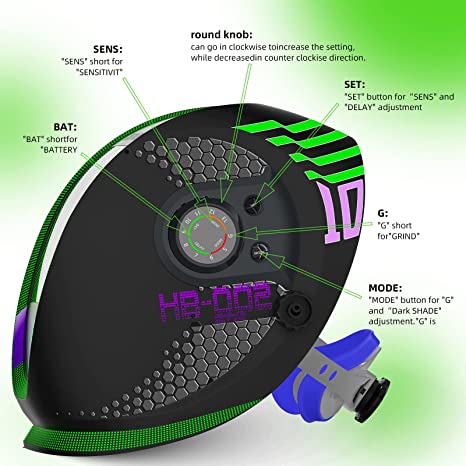

Operation Instruction
1.START
Please note that when device in sleeping mode ( no signal),please turn round knob to wake it up.Note that it's useless topress"SET" and "MODE" buttons.After that users can startmaking setting as per own requirement.
NOTE:"G" is regarded as default setting, filter under GRIND modeis not working.
2.For Function key MODE
SHADE: Slightly press"MODE "button, go into 5-8 dark shade adjustment;Press " MODE " again, go into 9-13 dark shade adjustment. It's a
circling setting.
3.For Function key SET
SENS: Slightly press" SET"button, firstly go into SENS setting."SENS" light will flash,knob in direction:
CW:SENS to max
CCw: SENS to min.
DELAY: Slightly press"SET)"button twice, then go into DELAY setting."DELAY" light will flash,knob in direction:
CW:DELAY to max (longer time)
CCW:DELAY to min (shorter time)

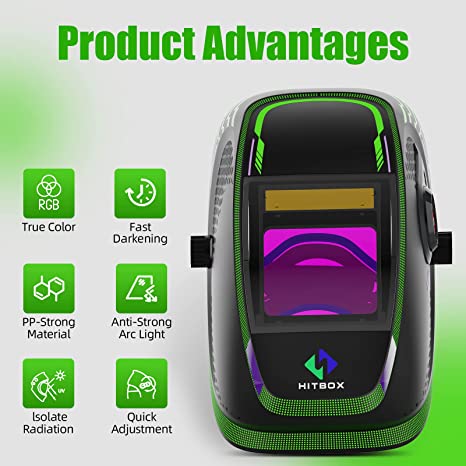

Great Protection

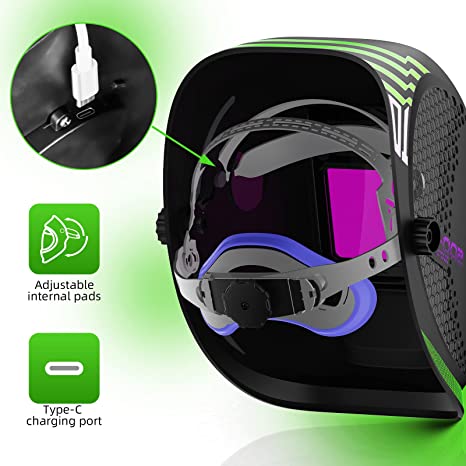

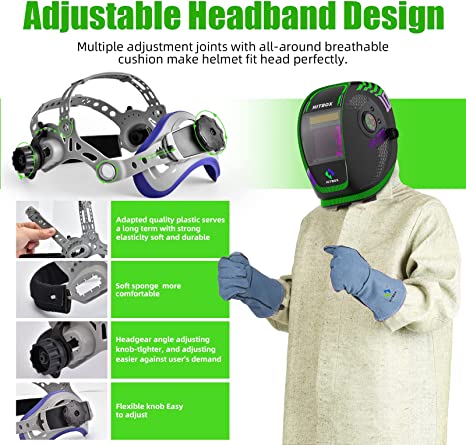

Adjustable headgear with sweat band for the perfect fit and comfort while welding. Headgear with oversized comfort cushion provides extensive adjustability,
4 Arc Sensors
Two more sensors than ordinary welder helmet, providing super-fast switching time and accurate auto shading, avoiding eye stress
Super large viewing
Amazingly widen lens only with HITIBOX today! 3.94”×3.74” (15 sq in) wide viewing powered by the updated True-Color technology restore every details of working conditions.
Anti-crushing
High quality materials. No deformation due to extrusion.Take it with you wherever you want.
Comfortable wear
Multi angle adjustable，One gentle turn, all applicable！
