HITBOX Welding Helmet Auto Darkening - Black&Black

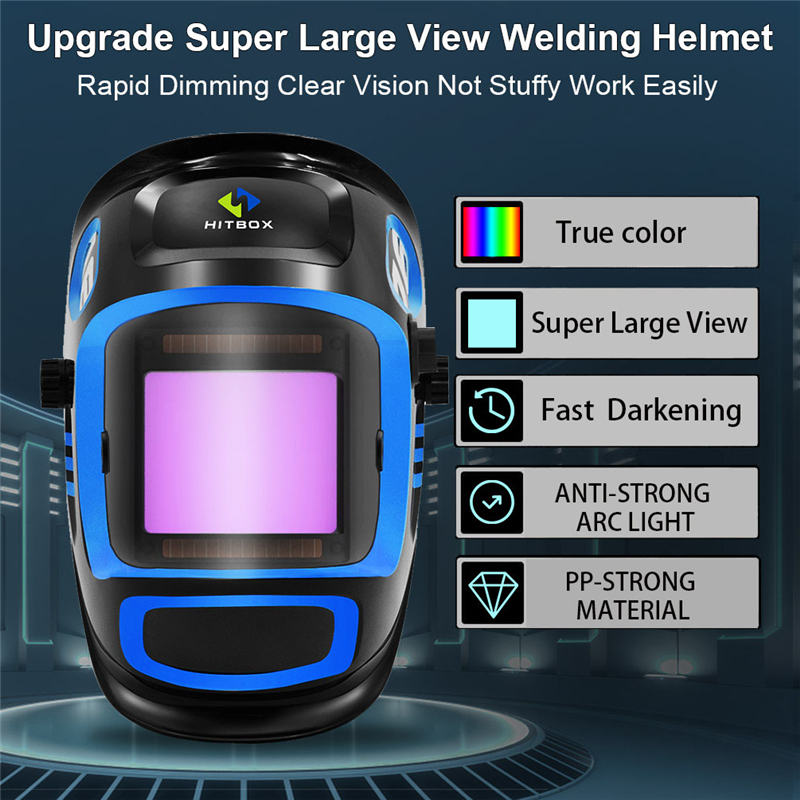

HITBOX Large Viewing Welding Mask (X800F)
The True Colour technology upgrade for HITBOX welding helmets improves visibility and reduces eye strain by reducing the traditional lime green colour of the helmet shield.
- Ideal for TIG MIG MMA, Plasma applications with grinding capability.
- Extra large 3.93" x 3.66" display view with 4 high quality sensors.
- Enhanced clarity with true colour vision - 1/1/1/2 optical clarity
- Longer battery life
- Premium comfort with swivel harness
HITBOX Welding Helmets Automatic Darkening
How to use LYX800F
- Before use, remove the protective film from the protective glass on the front and back of the lens.
- Sunshield adjustment: adjustment knob on the left side of the automatic handset. Turn on the switch, adjust the knob and select the appropriate tone number according to the circuit.
- Sensitivity adjustment: adjustment button on the upper left side of the lower LCD box. i.e. reaction time: from light to dark tones. The sensitivity of the received welding lamp signal is changed by adjusting the "Sensitivity" knob. Set it higher when the welding current is low.
- Adjustment of the delay time: This button is located on the upper right side of the automatic handset.
Specifications
- Filter size：52.36" x 44.88" x 4"
- Active viewing area: 3.94" x 3.66".
- Light shade: DIN4
- Dark tint: DIN5～DIN9/ DIN9～DIN13
- Switching time≤1/10000S
- Delay time 0,1S～0,8S
- Nominal battery capacity 600mAh
- 4 sensors for arc welding
|
|
|
|
|---|---|---|
Large View Welding MaskTrue Colour technology not only allows you to see better, but also to see more. The large 3.93" x 3.66" viewing area gives you a full view of the welding area, improving operator control. |
Clearer, true colour visionNow you can further enhance a good view. Upgrade your welding helmet with True Colour technology, which retains the existing 1-1-1-2 optical clarity rating but improves visibility by reducing the lime green tint. |
Comfortable back strapsThe oversized padded back strap offers a high degree of adjustability, configuration and enhanced support for better fit and comfort. |
How to adjust the shading level for different jobs
|
|
|
|
|---|---|---|
DIN9-13When the mode switch is set to "Weld", the "Shade" dial has the range "9-13". |
DIN5-9When the mode rocker switch is on "Cut", the "Shade" dial has a range of "5-9". |
DIN4When the "Grind" mode is set, the target does not respond to any arc. THIS MODE IS RESERVED FOR GRINDING. |
HITBOX Large Viewing Welding Mask (X800F)
The True Colour technology upgrade for HITBOX welding helmets improves visibility and reduces eye strain by reducing the traditional lime green colour of the helmet shield.
- Ideal for TIG MIG MMA, Plasma applications with grinding capability.
- Extra large 3.93" x 3.66" display view with 4 high quality sensors.
- Enhanced clarity with true colour vision - 1/1/1/2 optical clarity
- Longer battery life
- Premium comfort with swivel harness
HITBOX Welding Helmets Automatic Darkening
How to use LYX800F
- Before use, remove the protective film from the protective glass on the front and back of the lens.
- Sunshield adjustment: adjustment knob on the left side of the automatic handset. Turn on the switch, adjust the knob and select the appropriate tone number according to the circuit.
- Sensitivity adjustment: adjustment button on the upper left side of the lower LCD box. i.e. reaction time: from light to dark tones. The sensitivity of the received welding lamp signal is changed by adjusting the "Sensitivity" knob. Set it higher when the welding current is low.
- Adjustment of the delay time: This button is located on the upper right side of the automatic handset.
Specifications
- Filter size：52.36" x 44.88" x 4"
- Active viewing area: 3.94" x 3.66".
- Light shade: DIN4
- Dark tint: DIN5～DIN9/ DIN9～DIN13
- Switching time≤1/10000S
- Delay time 0,1S～0,8S
- Nominal battery capacity 600mAh
- 4 sensors for arc welding
Large View Welding Mask
True Colour technology not only allows you to see better, but also to see more.
The large 3.93" x 3.66" viewing area gives you a full view of the welding area, improving operator control.
Clearer, true colour vision
Now you can further enhance a good view. Upgrade your welding helmet with True Colour technology, which retains the existing 1-1-1-2 optical clarity rating but improves visibility by reducing the lime green tint.
Comfortable back straps
The oversized padded back strap offers a high degree of adjustability, configuration and enhanced support for better fit and comfort.
How to adjust the shading level for different jobs
DIN9-13
When the mode switch is set to "Weld", the "Shade" dial has the range "9-13".
DIN5-9
When the mode rocker switch is on "Cut", the "Shade" dial has a range of "5-9".
DIN4
When the "Grind" mode is set, the target does not respond to any arc. THIS MODE IS RESERVED FOR GRINDING.
