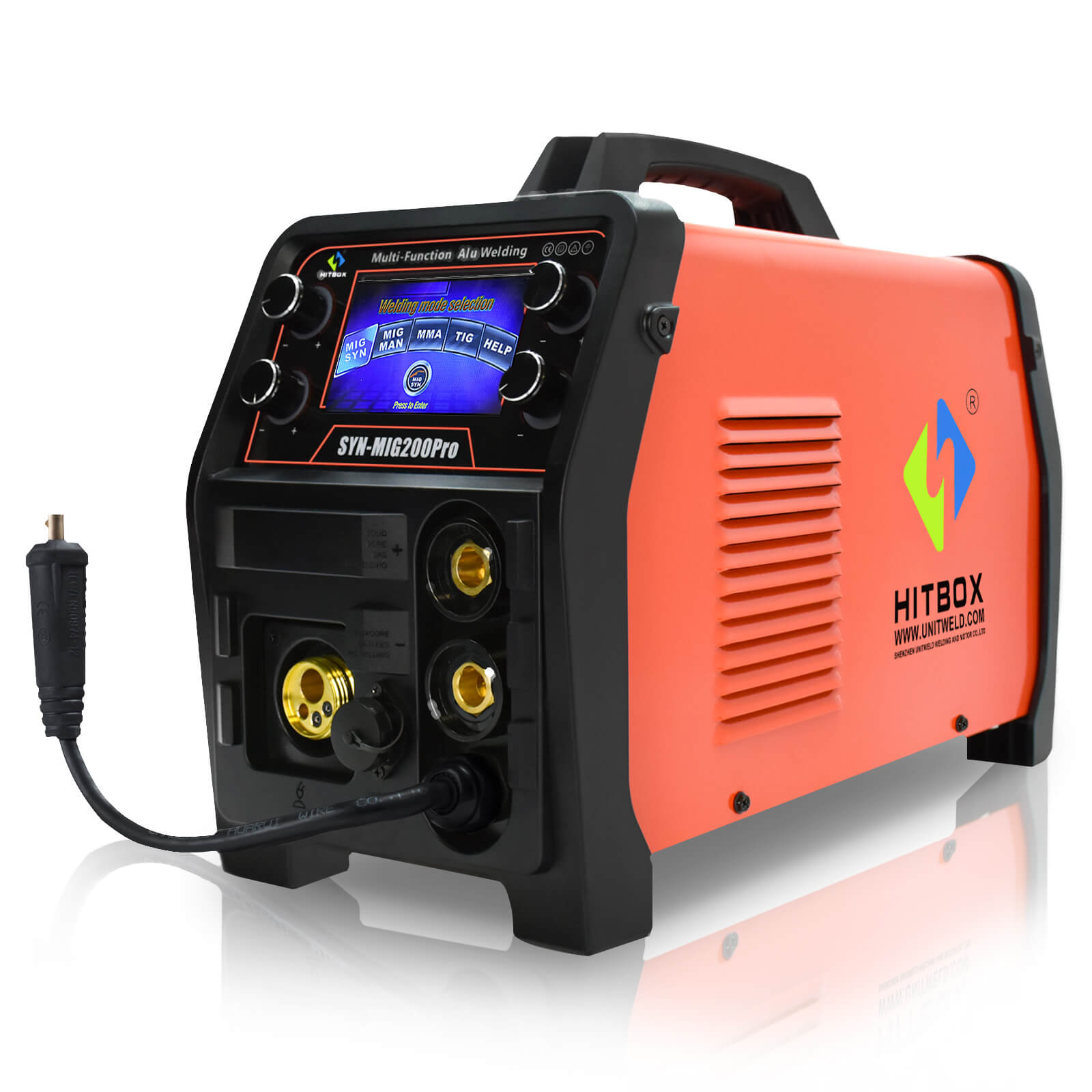

HITBOX SYN MIG200Pro 5 in 1 Intelligent Aluminum MIG Welder
$599.99
Download Specifications
clause
X
Specification
SYN MIG200Pro:

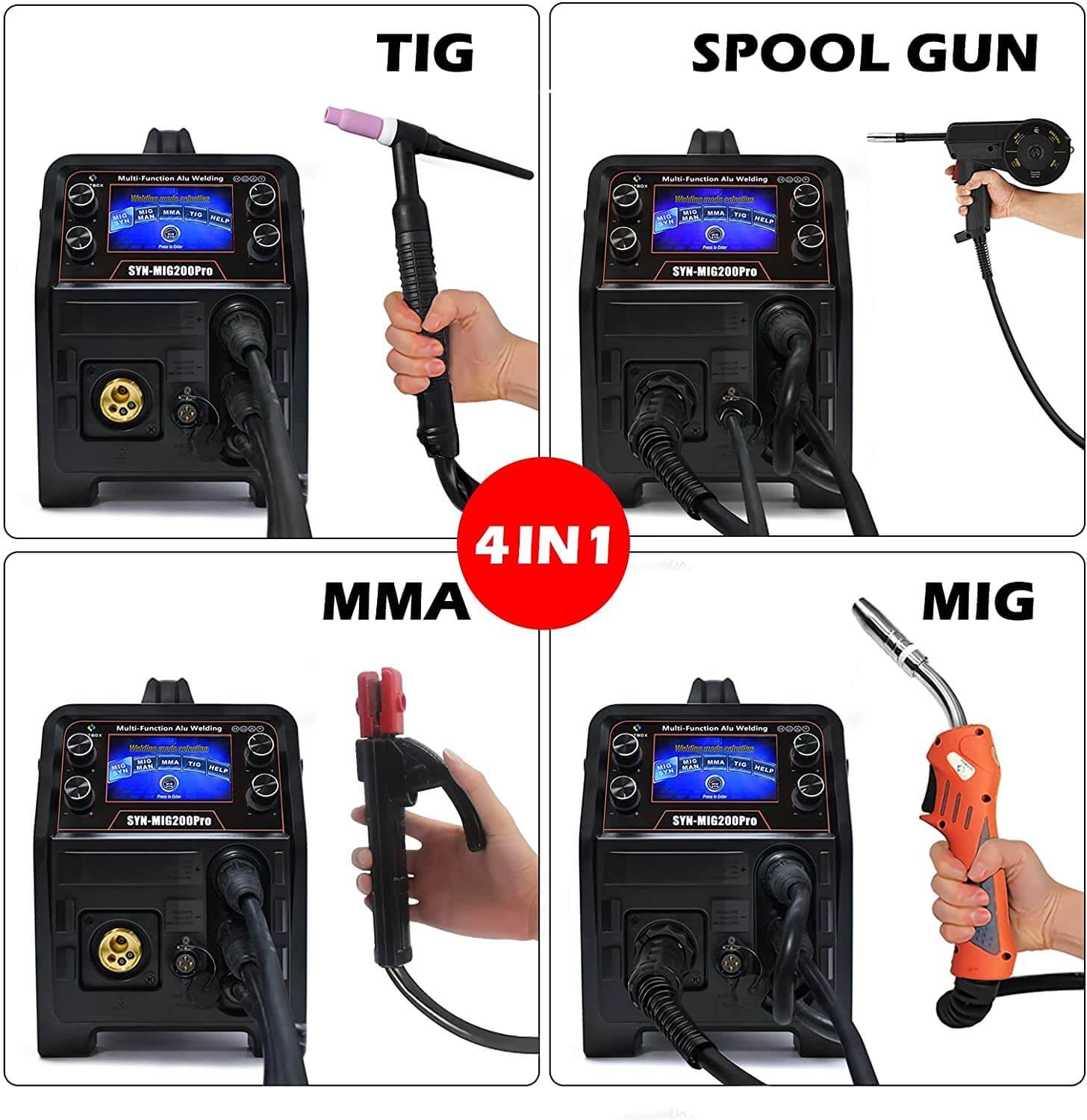

5 in 1 welders:
MIG gasless welder、MIG MIX gas welder、MIG CO2 gas welder、TIG welder（Lift）、ARC welder.
2 ways to use:
Synergy MIG-Set welding parameters: semi-automatic welding-Intelligent recommended welding parameters.
MAN-MIG:
adjust parameters by yourself that professional welders like.

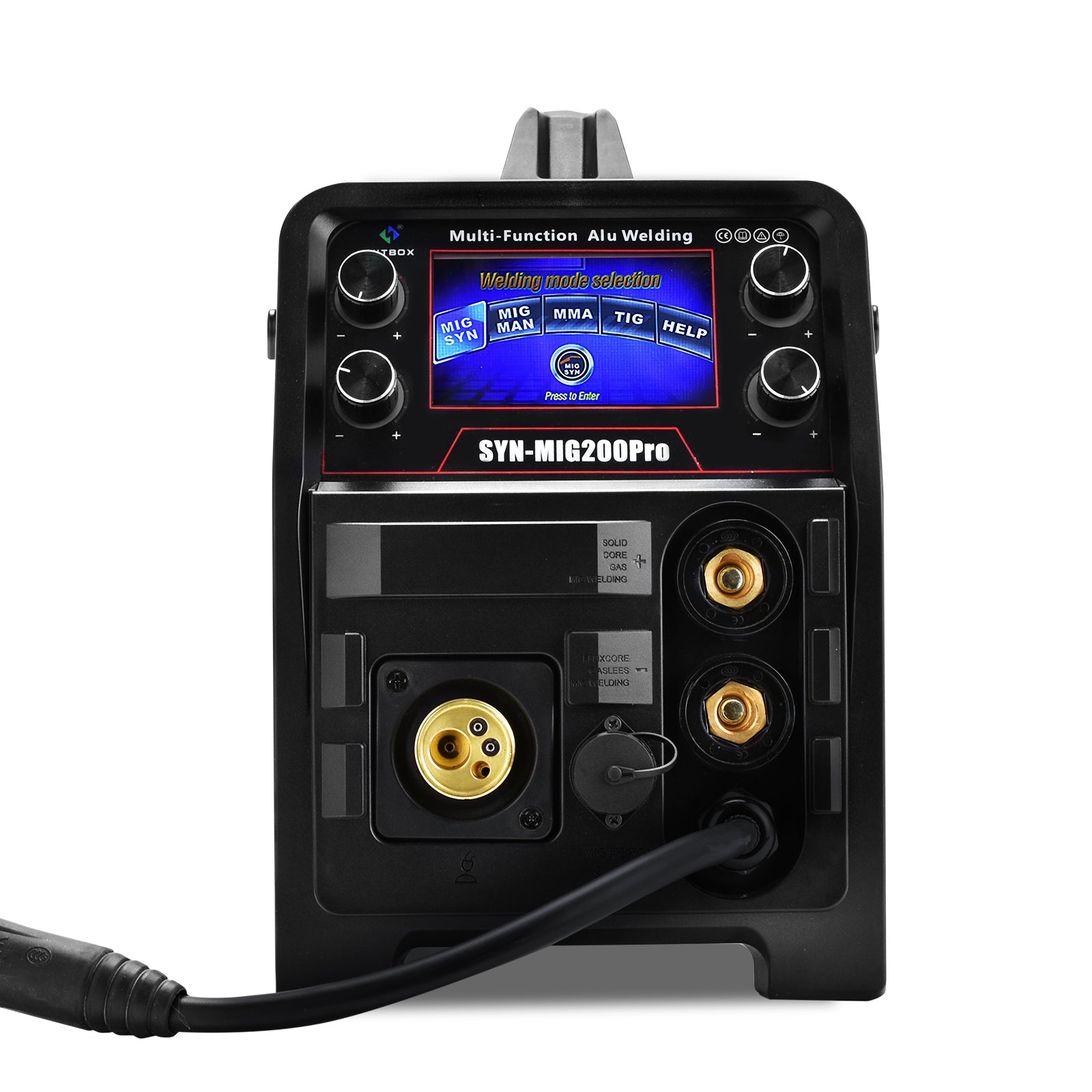

HD digital LCD display:
Clearly show each of your welding parameters Making welding easier.
Output current:
0-200Amp adjustable current MMA: 170A、 TIG：200A、MIG：200A.
Weldable metal wide range:
Iron, carbon steel, stainless steel, aluminum silicon（Al&Si）, aluminum magnesium（Al&Mg）, copper silicon, copper magnesium and other metals.
Digtal HD LCD Display
Parameters
- Rated input voltage (V) - 110V/220V
- Frequency (HZ) - 50/60
- Rated input power (KW) - MIG: 5.7; TIG: 4.37; MMA: 6.3
- Rated input current (A) - MIG: 36.0; TIG: 28.1; MMA: 40.5
- Rated input apparent power (KVA) - MIG: 7.8; TIG: 6.21; MMA: 8.9
- Welding current adjust range (A) - 10 ~ 200
- Welding voltage adjust range (V) - 10 ~ 26
- Duty cycle (40℃ 10min) - 25%, 200A; 60%, 150A; 100% 130A
- No load voltage (V) - 50V (adjustable)
- Power factor - MIG: 0.73; TIG: 0.70; MMA: 0.71
- Duty CycleEfficiency(%) - ≥80%
- Protection class - IP23
Package includes:
1 x 4 in 1 welder.
1 X welding gun.
1 X graphite wire feed tube:
when welding aluminum, please do use it with the mig gun.
1 X welding brush/ hammer combo.
X earth clamp.
1 X gas tube.
1 X electorde holder.
1 X adapter(3g 3.0mm^2).
1 X 0.6mm/0.8mm V shape drive roller.
1 X 1.0mm/1.2mm U shape drive roller.
when welding aluminum, please do use it with the mig gun.
